Easytrack FS Gantry and Voyager Portable Hoist

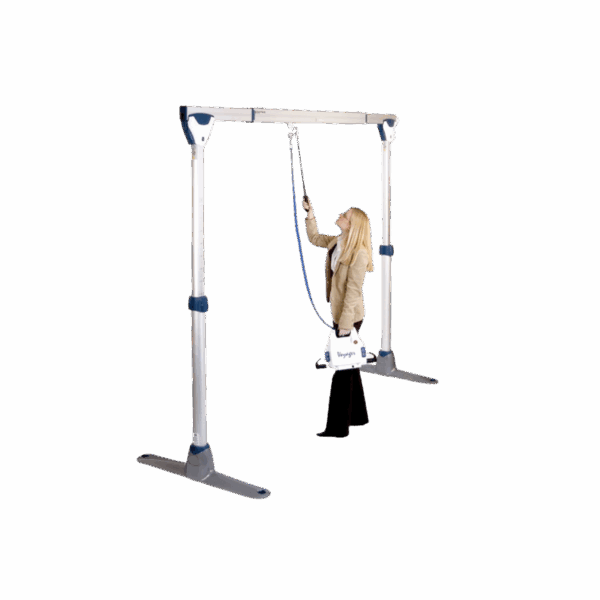

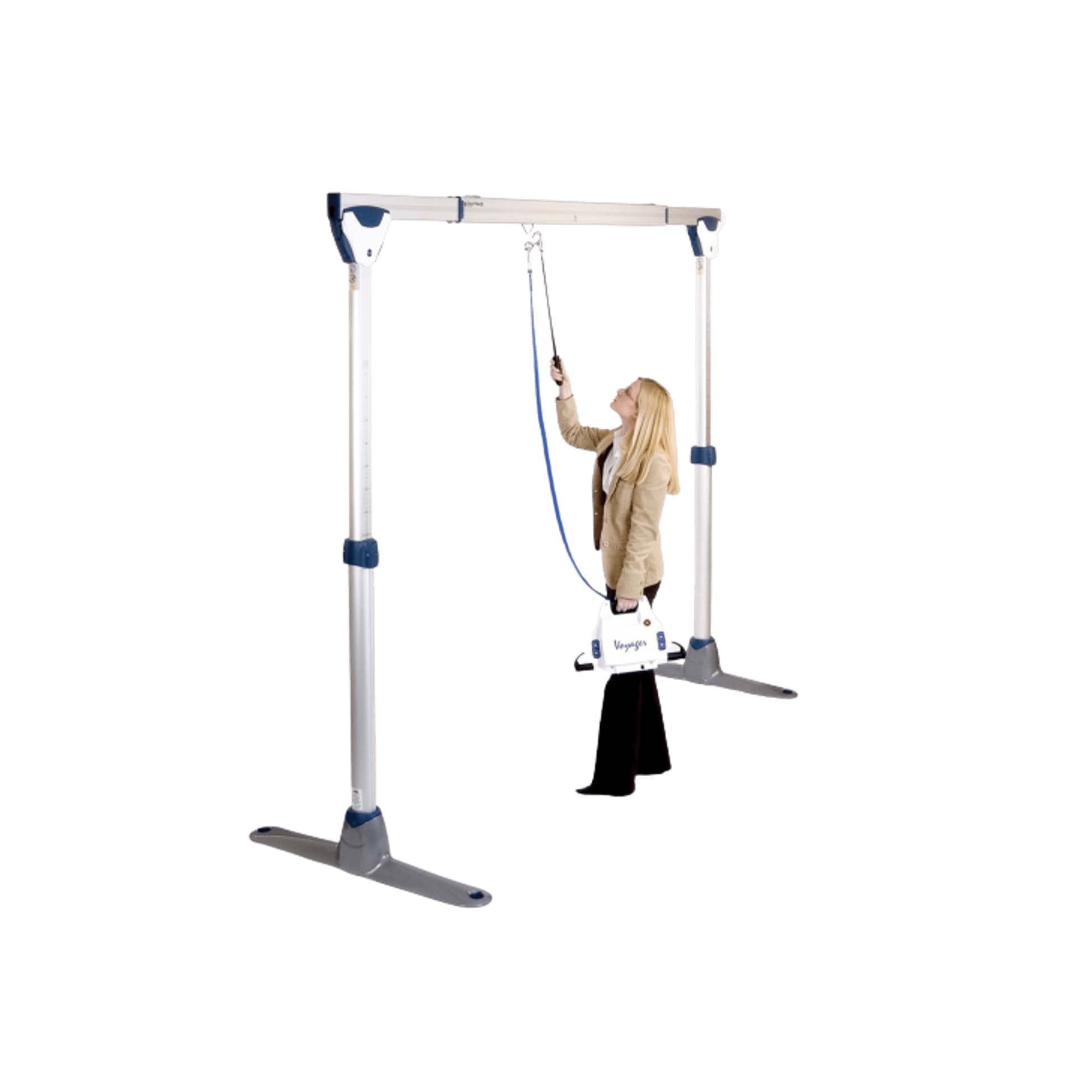

The Easytrack FS is a lightweight, free-standing portable gantry.  It couples with the Voyager portable hoist to support safe lifting and transfers of plus-size patients weighing up to 200kg (31 stone).

Page Sections
Key Features

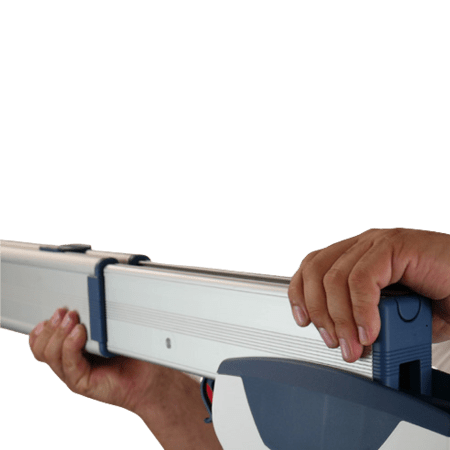

Assembled quickly and easily by Medstrom’s team of experienced and highly qualified technicians.

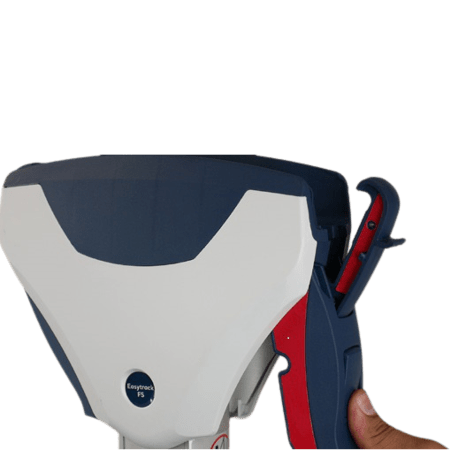

The Easytrack FS gantry components securely lock into place. Clear visual indicators show locked/unlocked positions, maximising safety.

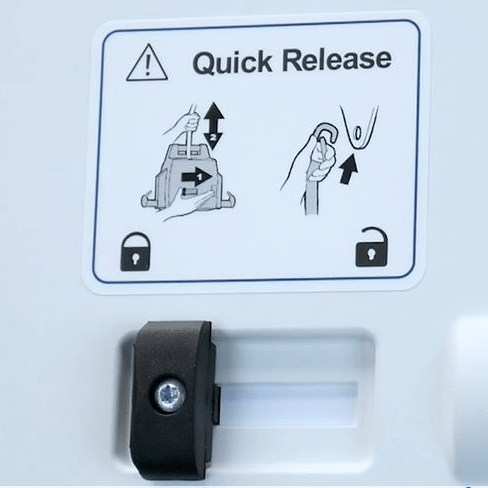

The unique quick release strap on the Voyager portable hoist allows instant repositioning and safe attachment to the gantry.

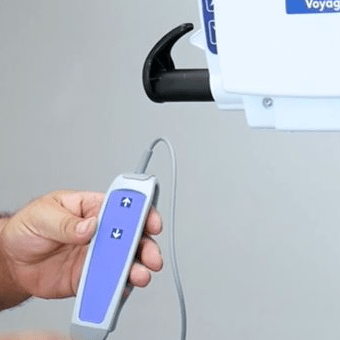

A corded handset and controls on the front of the Voyager unit allow easy and ergonomic lifts and transfers.

Technical Specifications
Easytrack FS gantry: Safe working load: 200kg (31st)
Easytrack FS gantry: Overall height range: 183cm - 241cm
Easytrack FS gantry: Overall width: 221cm - 323cm
Easytrack FS gantry: Internal width: 191cm - 293cm
Easytrack FS gantry: Rail weight: 14kg
Easytrack FS gantry: Post weight: 9.5kg
Easytrack FS gantry: Footplate weight: 5.5kg
Voyager portable hoist: Safe working load: 200kg (31st)
Voyager portable hoist: Overall weight: 5.5kg
Voyager portable hoist: Low battery alarm: Audible
Voyager portable hoist: Emergency lowering: Manual
Voyager portable hoist: Emergency stop: Battery eject button
