Eleganza 5 ITU Bed and Dolphin Therapy

Advanced ITU bed and surface combination providing significant clinical and caregiver benefits promptly, effectively and safely.

Make an enquiry

Page Sections

Supporting the complex needs of a critical care patient, the Eleganza 5 and Dolphin Therapy combination provides a comprehensive solution for dealing with complications of immobility and repositioning challenges.

The technologically advanced combination helps to prevent caregiver injury when completing complex manual handling procedures (e.g. proning and turning for pulmonary management) thanks to the innovative laterally tilting platform.

Indications for use:

Immobile/sedated ITU and HDU patients at risk of respiratory complications
Patients with complex needs at risk from complications of immobility
Where repositioning is challenging, including proning
Requirement for continuous, accurate weight monitoring
Patients who would be suitable for air fluidised therapy for the prevention of skin breakdown and/or repair of existing pressure damage
Mobilisation of recovering ITU/HDU patients

Key Features

Platform based full body lateral tilt to 15 degrees prevents respiratory complications such as ventilator associated pneumonia (VAP) and facilitates patient repositioning and mobilisation.

The cardiac chair position assists with breathing, prepares patients for mobilisation and gives a psychological boost to patients confined to bed.

The bed exit alarm can be set to monitor movement or egress from the bed, reducing falls and injury risks.

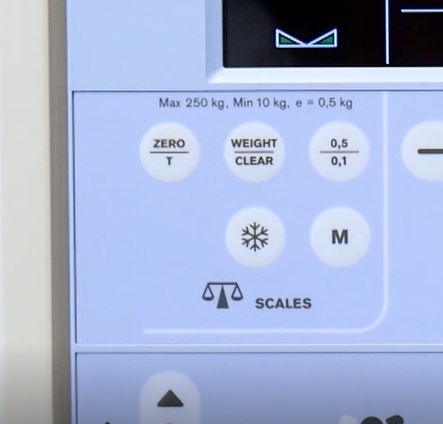

The intuitive integrated Class III Weighing System measures the precise weight of the patient in most bed positions.

Technical Specifications

Eleganza 5 Bed: Minimum height: 43.5cm

Eleganza 5 Bed: Maximum height: 81.5cm

Eleganza 5 Bed: Safe working load: 250kg (39st)

Eleganza 5 Bed: Max patient weight: 185kg (29st)

Eleganza 5 Bed: Bed weight: 210kg – 248kg

Eleganza 5 Bed: Total length and width: 219cm x 100cm

Eleganza 5 Bed: Dimensions of sleep deck: 208cm x 90cm

Eleganza 5 Bed: Bed length extension: 22cm

Eleganza 5 Bed: Back rest angle: 65°

Eleganza 5 Bed: Knee angle: 30°

Eleganza 5 Bed: Calf angle: 30°

Eleganza 5 Bed: Trend/reverse Trend angle: + 14° / - 14°

Eleganza 5 Bed: Castors: Four twin-wheel, 15cm multidirectional castors, with central brake & steer

Eleganza 5 Bed: CPR: Electric and bi-lateral manual

Eleganza 5 Bed: Side rails: Split design with integrated bed controls

Eleganza 5 Bed: Warranty: 24 months from purchase date

Dolphin Therapy: Min patient weight: No minimum weight

Dolphin Therapy: Max patient weight: 248 kg (39st)

Dolphin Therapy: Total length and width: 208cm x 89cm

Dolphin Therapy: Depth: 25cm

Dolphin Therapy: Mattress weight: 10kg

Dolphin Therapy: Control unit dimensions: 29.2cm (W) x 31.8cm (H) x 15.2cm (D)

Dolphin Therapy: Control unit weight: 4.5kg

Dolphin Therapy: Battery backup: 12 hours

Documentation

Eleganza 5 Brochure Dolphin Therapy Brochure Eleganza 5 & Dolphin Therapy Critical Care Pathway
